IPEX

IMPULSE POWDER EXTINGUISHING MODULES

Non-pressurized & self-contained hybrid-aerosol system that delivers a gas-powder extinguishing medium to rapidly extinguish fires in enclosed, semi-open or open areas. To date IPEX systems have protected thousands of buses and mining equipment worldwide.

IPEX systems are designed with stringent compliance with relevant international standards such as ISO 15779, NFPA 2010, UL 2127, AS 1851 and AS 4487.

Product Brochure

THE HYBRID FIRE SUPPRESSION SYSTEM.

IPEX is a hybrid dual-agent technology incorporating both Aerosol and Powder extinguishing agents. The impulse discharge is achieved due to a special non-pressurized solid gas generator incorporated into the canister containing a special extinguishing powder. Upon activation, the gas generator release gases which rapidly build up and aerate the extinguishing powder, resulting in an impulse gas-powder delivery through a specially designed discharge outlet.

IPEX is suitable for both semi-open and open areas, and resistant to aggressive environments with high vibration, ambient temperatures up to 90C, dust, sprays, precipitates etc.

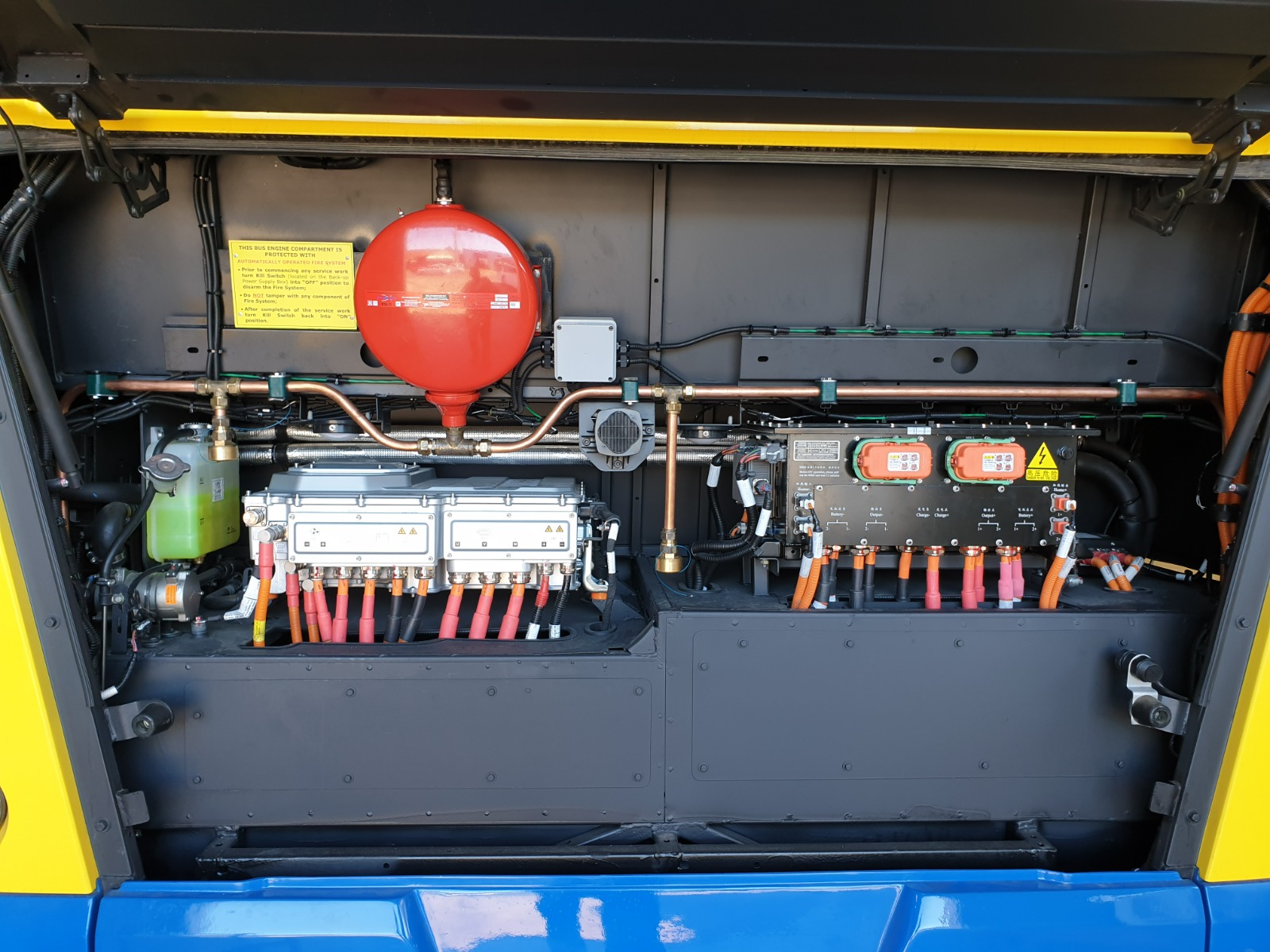

Due to its durability in aggressive environments, non-pressurized nature, and extremely low maintenance, it offers reliable fire protection with minimal investment. As such, IPEX is ideal for buses, rail, transport and mining vehicles, off-road vehicles, mobile compressors, outside of oil transformers, electrical and mining machinery, engine compartments and many others.

DURABLE, NON-PRESSURIZED,
LOW MAINTENANCE.

ADVANTAGES

COST EFFECTIVE

Simple to install & re-commission.
Can be installed inside protected areas.
No maintenance required for IPEX modules.

VERSATILE

Enclosures or semi-open and open spaces.
Stationary or mobile installations.
Installed inside or outside protected area.
Small areas: no piping and distribution nozzles.
Large areas: simple piping & 4-6 distribution nozzles.

ROBUST VS AGGRESSIVE ENVIRONMENTS

Ambient temperatures up to 90C.
High vibration.
High or low humidity.
Dusts, Salts, Sprays.

RELIABLE PERFORMANCE

Extremely high effectiveness.
Dual agent extinguishing action.
Impulse/rapid agent delivery.
No agent caking.

ENVIRONMENTALLY FRIENDLY

Zero Ozone Depletion Potential.
Zero Global Warming Potential.
Negligible Atmospheric Lifetime.

NO PRESSURIZED CYLINDERS

No stored liquids or gases.
No agent leakage.
No pressure gauges & moving parts.

TESTED & CERTIFIED

Conforms to ISO 15779, NFPA 2010, UL 2127, AS 1851 and AS 4487.
Certified by Activfire by CSIRO Australia.

VERSATILITY OF APPLICATIONS

IPEX offers a choice of an advanced automatic system with a fire panel and full monitoring (used in standard Passenger Buses and Coaches) or a manually operated stand-alone autonomous system with no external power or batteries required (used in Mining Vehicles & Mobile Equipment).
